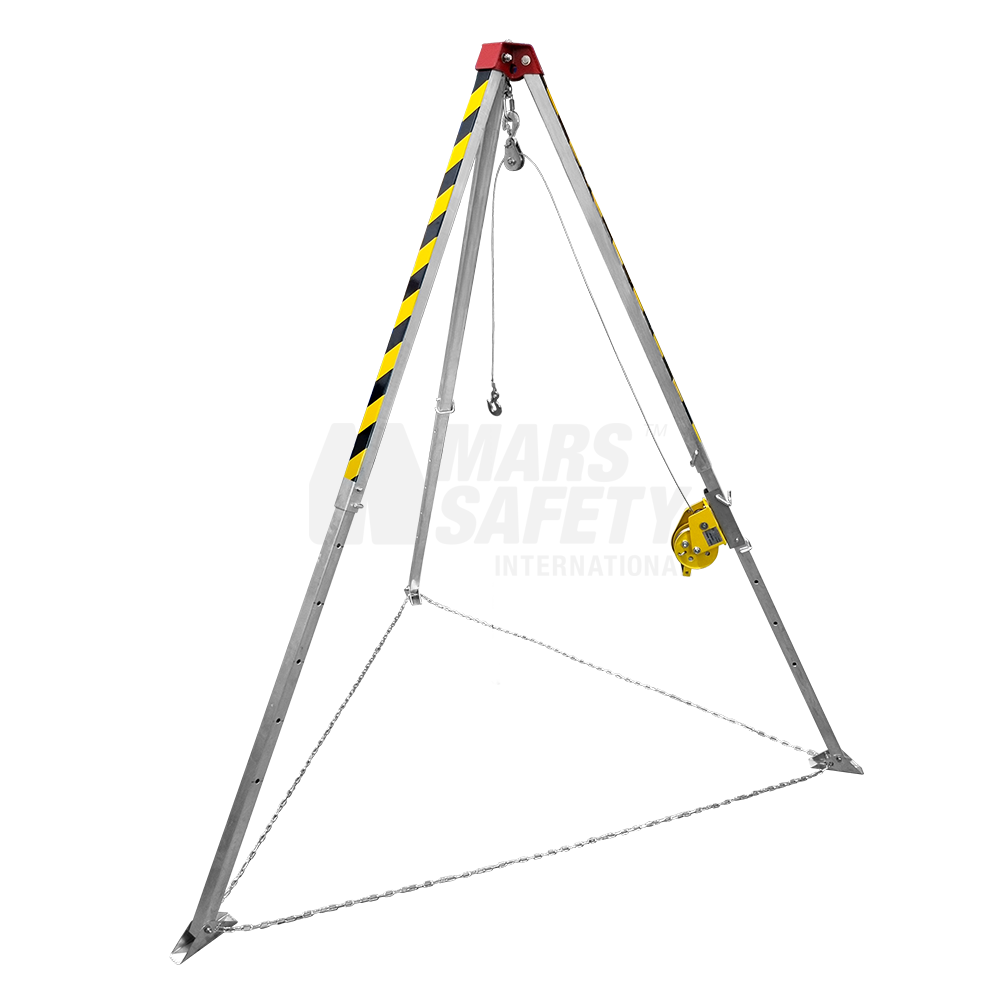

Rescue Tripod

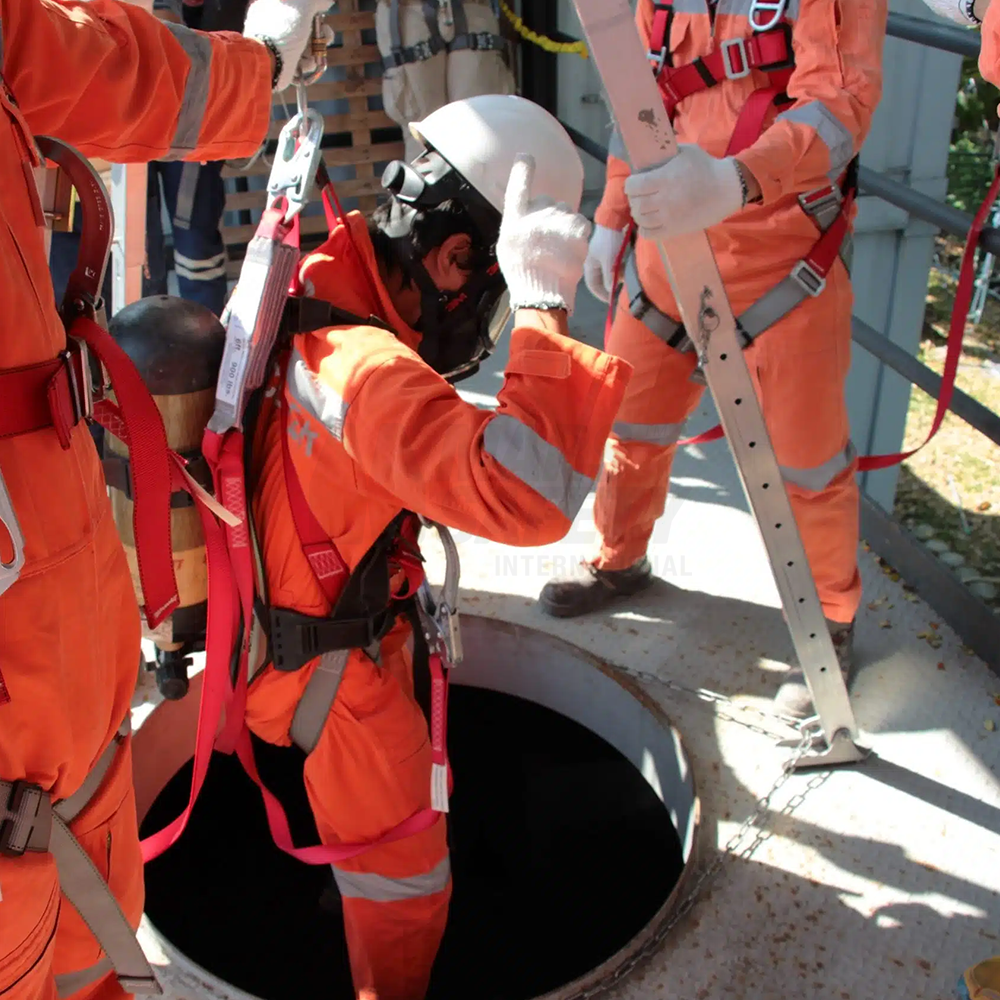

A rescue tripod is crucial for maintaining safety and efficiency during confined space rescues, water rescues, fall protection, and personnel recovery. The manual winch offers a maximum lifting capacity of 200 kg for personnel.

Product Features:
  • This product requires minor assembly before use, as the winch needs to be mounted.
  • The ideal tool for confined spaces, providing safe access and emergency rescue.
  • Foldable and easy to carry around, winch can be easily disassembled for storage.
  • Self-locking 1200LB manual winch with 200kg max personnel lifting capacity.
  • The tripod legs can be adjusted in height, ranging from 1.34m to 2.14m.
  • Designed with non-slip aluminium alloy feet, adjustable to suit uneven ground.
  • The top cover is equipped with circular holes for attaching fall arrestor device.
  • Yellow and black decal on all sides for visibility.



Important Note:

Always utilize a fall arrestor device when using the rescue tripod for an added layer of safety.

Technical Specifications
Model HXSJ-20
Material High-Strength Aluminium Alloy
Winch Safe Working Load 200kg
Winch Stopping Force 22KN
Winch Gear Ratio 5:1
Steel Cable Length 20m
Steel Cable Diameter 4mm
Tripod Minimum Height 1.34m
Tripod Maximum Height 2.14m
Blocking Power 500kg
Maximum Lifting Weight 160kg
Product Weight ≤30kg

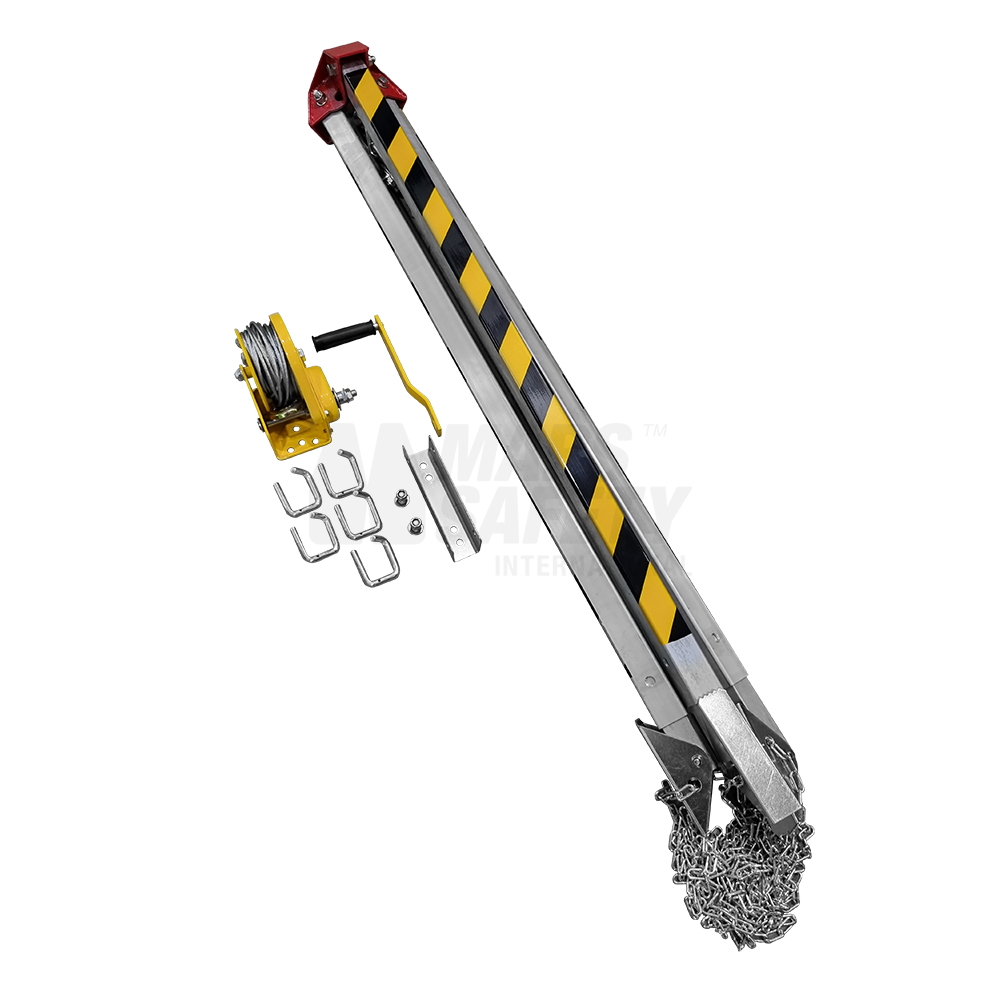

Content
Tripod 1pc
Winch 1pc
Winch Handle 1pc
Mount with Bolts & Screws 1set
Lifting Pins 5pcs
Certifications
Approval CE Certificate
Standard EN 795:2012. Detailed technical requirements are outlined in the test report.



Rescue TripodTechnical Data Sheetpdf - 987 KBDownload
