Our Product

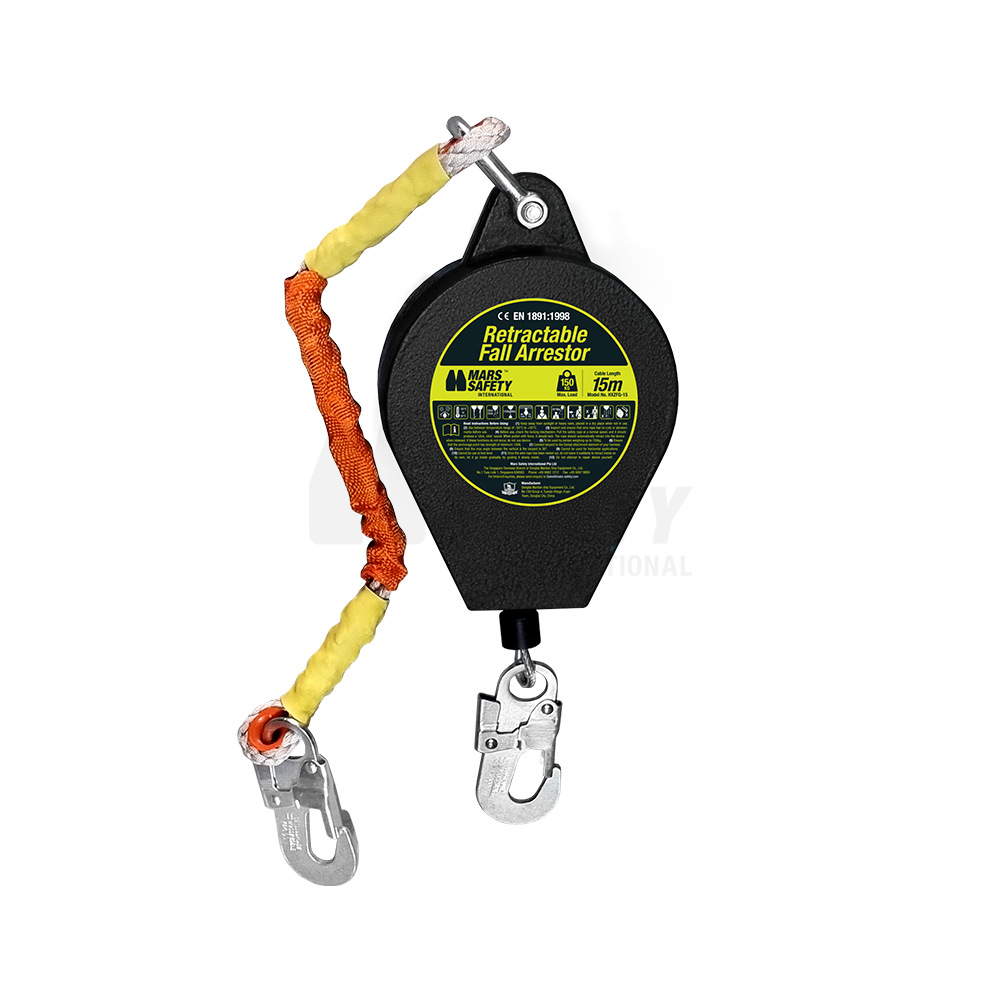

Retractable Fall Arrestor

Retractable fall arrestor helps prevent serious accidents by providing critical fall protection for crew members working at heights, in confined spaces, or on exposed surfaces. It is a key component of safety protocols in maritime and offshore environments, enhancing overall worker safety and operational efficiency.

Available in length variations of 5m-30m.



Product Features:
  • Ideal for use where user mobility is required and fall protection is needed for inspection work, general construction and maintenance work.
  • It includes an alloy steel D-Type shackle and a built-in brake with an energy dissipating mechanism.
  • Breaking mechanisms stop falls quickly and reduce forces on the user’s body.
  • Maximum load of 150kg and a braking force of 8.9KN.



Important Note:

This product is manufactured in compliance with EN 1891:1998 standard and should be used in accordance with that standard.



Technical Specifications
Model HXFZQ Series
Shell Material Aluminium Alloy
Maximum Load 150kg
Cable Diameter 4.5mm
Braking Force 8.9KN
Locking Device Double
Locking Distance ≤0.2m
Lifetime 2×100,000 Times
Technical Specifications (Availability)
Model Max Load (Kg) Cable Length (m)
HXFZQ-5 150 5
HXFZQ-10 150 10
HXFZQ-15 150 15
HXFZQ-20 150 20
HXFZQ-25 150 25
HXFZQ-30 150 30
Retractable Fall ArrestorTechnical Data Sheetpdf - 750 KBDownload
