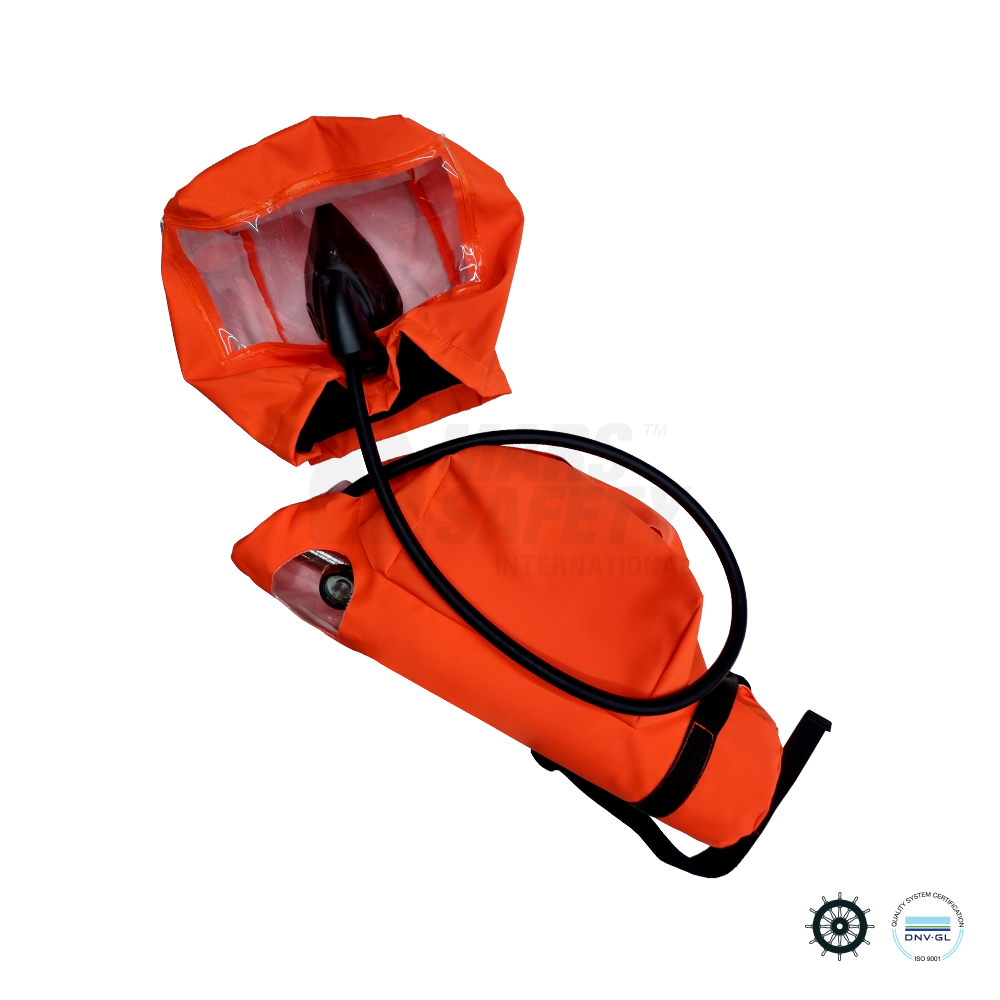

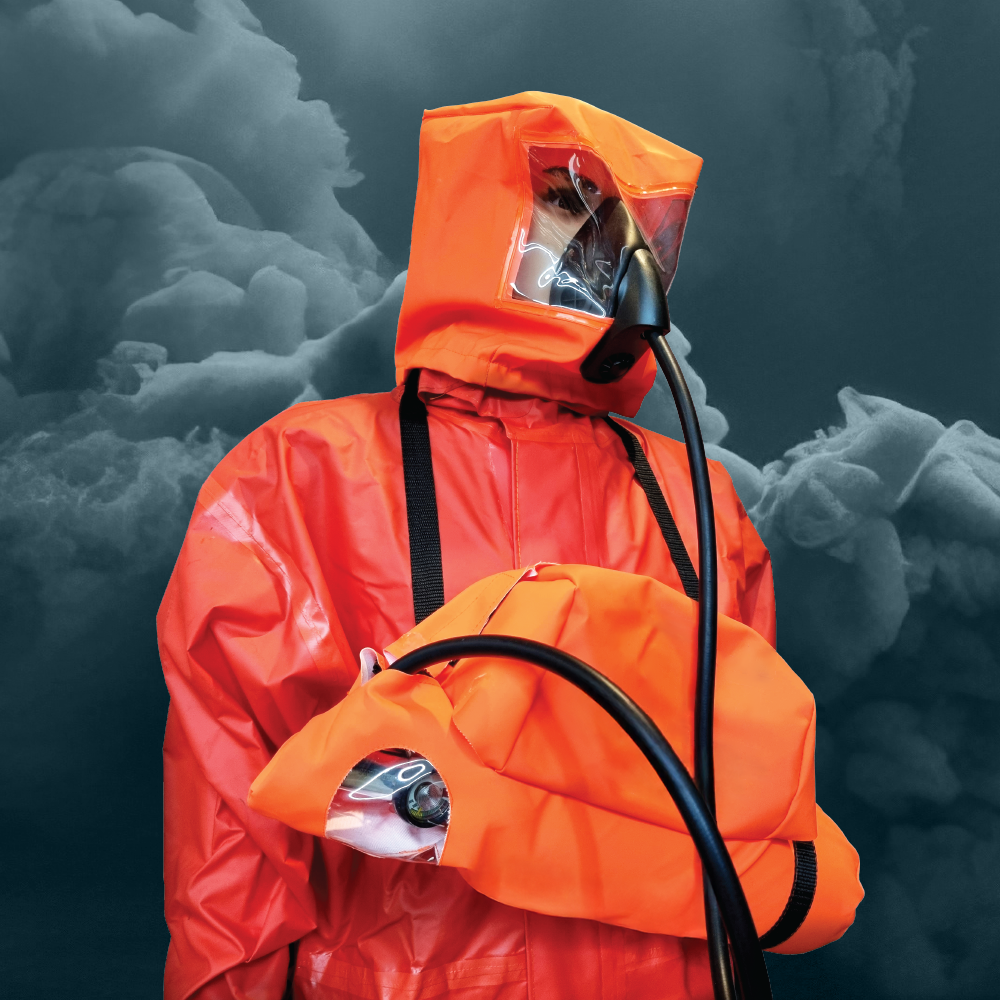

15 Minutes EEBD Emergency Escape Breathing Device (MED/SOLAS)

Our MED/SOLAS approved emergency escape breathing device (EEBD) is a crucial lifesaving tool used in maritime settings to provide breathable air for personnel in the event of an emergency, such as smoke or toxic gas exposure. The 3L air cylinder provides 15-minutes of breathable air.

Product Features:
  • A self-contained open-circuit compressed air breathing apparatus with a hood, provides personal breathing protection during escape from toxic or oxygen deficit in confined spaces onboard.
  • 3L air cylinder provides 15-minutes of breathable air.
  • Simple to put on hood-based design, can be used with minimal training.
  • The device is self-contained, does not need a separate air supply or connection to an external source. Activates by removing pin from air cylinder.
  • Compact and lightweight, can be worn either as a chest bag or over the shoulder.
  • Comes in Hi-Vis orange for high visibility in smoke filled environment.
  • A transparent window on the soft bag lets you check the cylinder pressure gauge easily without unpacking the unit.
  • Manual for use and maintenance is supplied with the product.



Important Note:

Not to be used for fighting fires or when entering oxygen deficient tanks or voids, or worn by firefighters.

Technical Specifications
Model THHX15-1
Cylinder Volume 3.0L
Working Pressure Of Air Cylinder 210Bar (21MPa)
Output Flow ≥35L/min
Export Pressure Of Pressure Reducer 0.65±0.2MPa
Inhalation Resistance ≤500ba
Exhalation Resistance ≤700ba
Rated Working Duration ≥15mins
Service Life 15 years
Weight ≤7.5Kg
Packing Size 545mm x 165mm x 210mm
Approval DNV
Regulations/Testing Standards SOLAS 74 as amended, Regulation II-2/13, IMO Res. MSC/Circ.849, ISO23269-1(2008), EN 1146:2005
IMPA Code 330438
EEBD (15 Minutes)Technical Data Sheetpdf - 823 KBDownload
