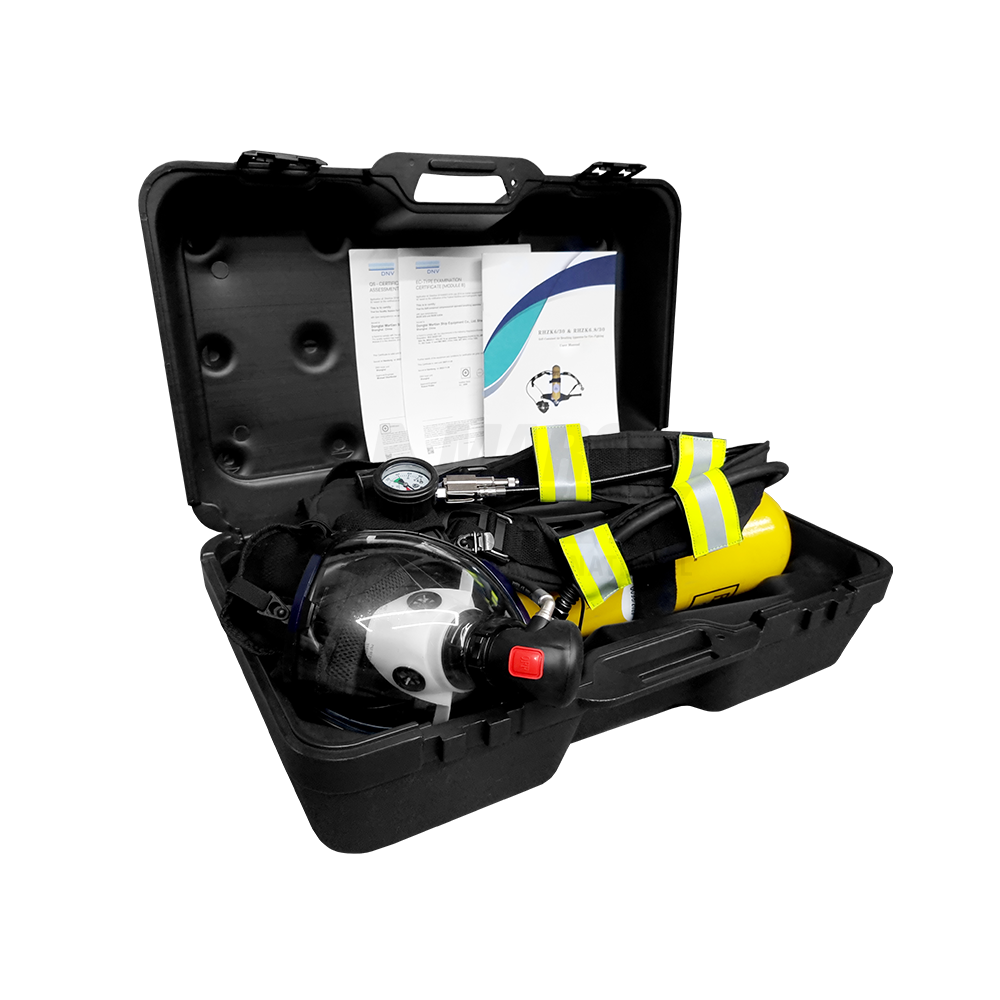

6L Steel Cylinder SCBA Self-Contained Breathing Apparatus (MED/SOLAS)

Our MED/SOLAS approved positive pressure self-contained breathing apparatus (SCBA) is an essential piece of firefighting equipment designed to deliver breathable air in environments that may be hazardous due to smoke, toxic gases, or insufficient oxygen.

Product Features:
  • MED/SOLAS approved positive pressure self-contained compressed air operated breathing apparatus, suitable for shipboard firefighters (maritime use only).
  • 6L volume provides 50-60 minutes of breathable air, estimated based on air consumption of 30L/min-Light work.
  • Equipped with a warning whistle that emits a sound of no less than 90dB when the air pressure in the cylinder reaches 50-60bar (5.5±0.5MPa), alerting the user when approximately 16% of the air remains in the cylinder.
  • Equipped with a Demand Valve that provides air only when inhaled, ensuring efficient air usage. Comes with ‘ON’ and ‘OFF’ buttons that allow the user to start or stop the air supply as needed. By using these buttons, user can halt the air supply and disassemble the demand valve from the face mask while the cylinder valve remains open. After reassembling the demand valve and face mask, user can resume breathing, which will allow the negative pressure inside the face mask to trigger the demand valve to open and supply air again.
  • Composed of an anatomic back frame with harness for perfect and easy donning.
  • Packed in heavy duty plastic carrying case with high impact resistance that protects the product.
  • Manual for use and maintenance is supplied with the product.



Important Note:

This product is not a diving apparatus. It is strongly recommended that the apparatus is used by well-trained personnel and not by untrained users.

Technical Specifications
Model RHZK6/30
Cylinder Volume 6L
Working Pressure Of Air Cylinder 300bar (30MPa)
Air Cylinder Material Steel
Air Deposit 1800L
Usage Time 50-60mins, Estimated based on air consumption of 30L/min-Light work
Export Pressure (Pressure Reducing Valve) 0.65±0.2MPa
Gas Valve (Pressure Reducing Valve) >300L/min
Inhalation Resistance ≤500ba
Exhalation Resistance ≤700ba
Exhalation Resistance (30L/min) ≤687ba
Opening Pressure (Gas Valve) ≤980ba
Opening Pressure (Relief Valve) 1.0-1.2MPa
Alarm Pressure 5.5±0.5MPa
Weight ≤21kg
Packing Size 710mm x 430mm x 290mm
Approval DNV
Regulations/Testing Standards SOLAS 74 as amended, Regulation II-2/10 & X/3, 2000 HSC Code 7, FSS Code 3, IBC Code 14, IGC Code 14, IMO Res. MSC.339(91) in conjunction with IMO MSC.1/Circ.1499, EN 137 (2006), EN 136 (1998) including AC (2003) and ISO 23269 2:2011
IMPA Code 330424
