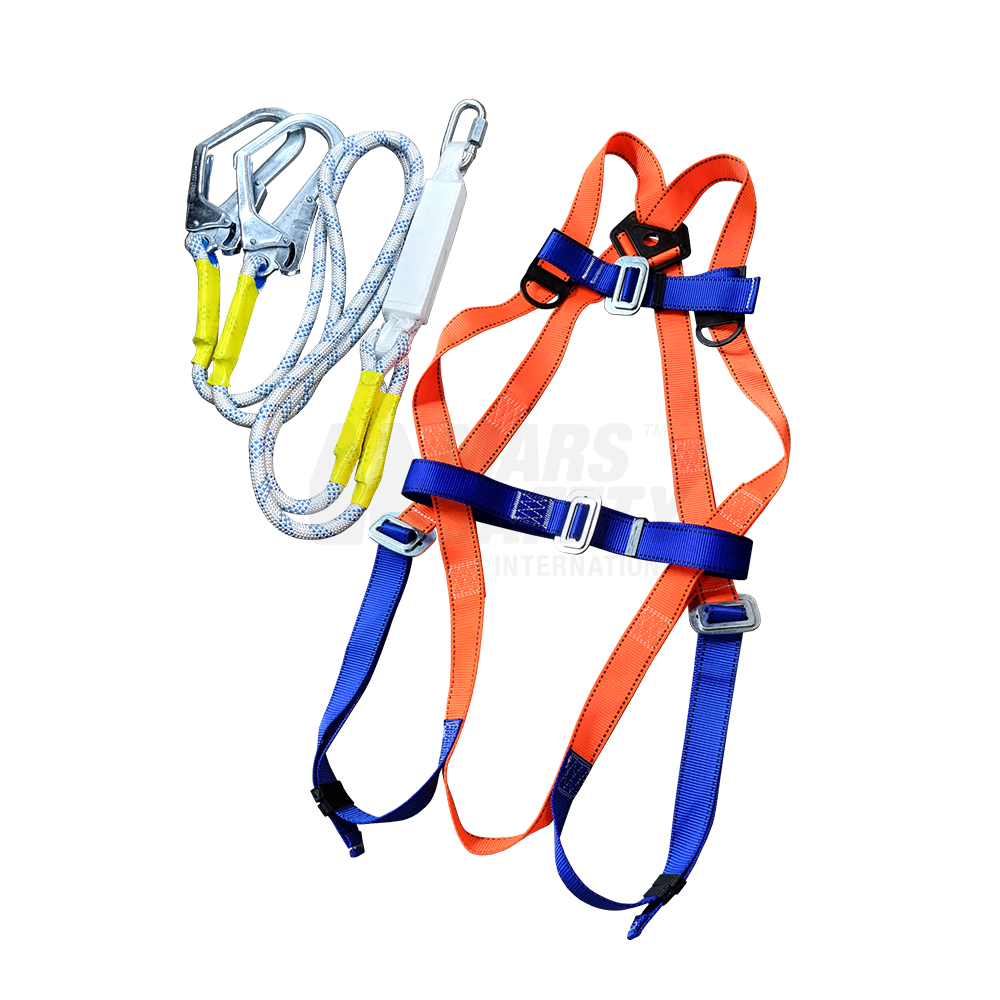

5 Point Fall Arrest Safety Harness Set

A 5 point full-body frame fall arrest safety harness equipped with shock-absorbing lanyard and dual alloy steel hooks, ideal for rescue operations, electrical work, and construction activities.

Product Features:
  • This product requires minor assembly before use, as the waist belt and shock-absorbing lanyard need to be attached to the main harness.
  • Ideal for rescue operations, electrical work, and construction activities.
  • The full-body frame construction ensures optimal weight distribution and comfort.
  • Waist belt for strap adjustment to fit most people.
  • Constructed from high-strength industrial synthetic polyester fibers with great performance in abrasion and heat resistance.
  • Include detachable shock-absorbing lanyard with dual quick-locking alloy steel hooks.
  • Shock-absorbing lanyard automatically opens when the operator falls, reducing the injury caused by the fall.
  • Fitted with PVC lanyard keepers on the front of the chest, allows for easy storage of unused lanyards, keeping your hands free.



Important Note:

This product is manufactured in compliance with the GB6095-2021 standard and should be used in accordance with that standard. Do not try to open the sealed packaging of the shock-absorbing lanyard. Once opened or used, it must be replaced with a new one.

Technical Specifications (Fall Arrest Safety Harness)
Bearing Capacity Approx. 100kg
Overall Tension 2000N
Strap Width 4cm
Strap Thickness 1.8mm
Material Polyester, Alloy Steel
Color Orange & Blue
User Suitability Adults of weight 69-90kg, waist 70-120cm, and height 160-190cm
Technical Specifications (Shock-Absorbing Lanyard With Dual Hooks)
Rope Length Approx. 1.6m
Rope Thickness 14mm
Bearing Capacity Approx. 100kg
Stretch Length ≤5m
Free Fall Distance 1.8m
Braking Force ≤4KN
Permanent Deformation ≤1.2m
Material Polypropylene, Polyamide, Alloy Steel
5 Point Fall Arrest Safety Harness SetTechnical Data Sheetpdf - 821 KBDownload
